Lantech

QL400XT

Intelligent, Intuitive & Instructional Keep Your Driver on the Forklift

Operators simply match one of the prebuilt, Ready to Wrap Profiles to their load and push start, eliminating the guesswork for stretch wrapping almost any load configuration.

Download Brochure

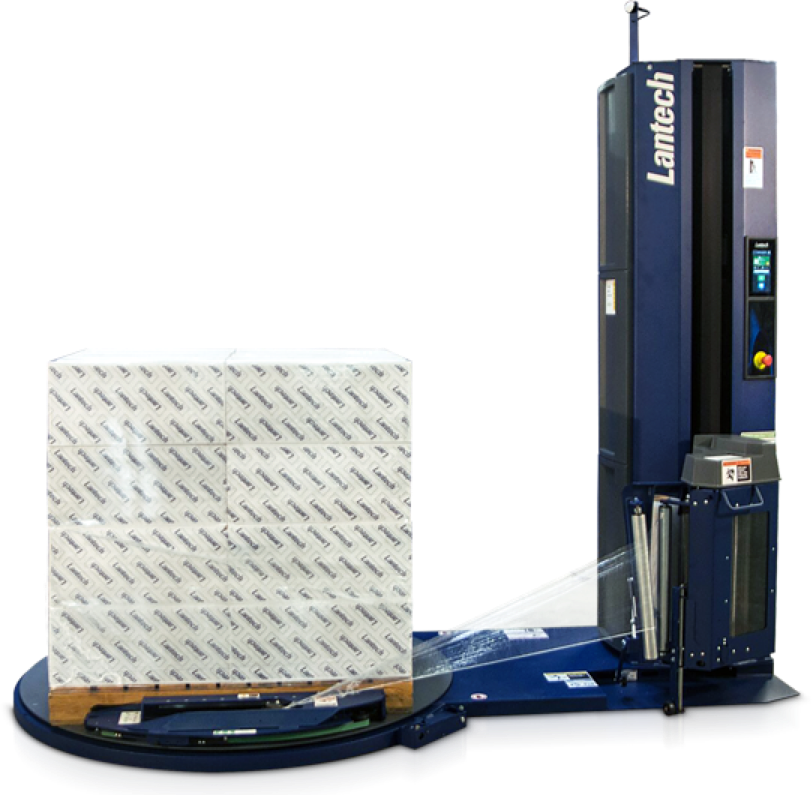

Lantech-QL400XT

Load Guardian

Load Guardian is Lantech’s patented control system that creates, maintains and delivers the right containment force for safe-to-ship loads every time. It minimizes operator interaction and eliminates the guesswork for stretch wrapping any load configuration.

Intelligent Set-up

Intuitively guides users through the profile creatiion process, using recognizable icons and smartphone-like simplicity, to calculate the right containment force.

Wrap Apps

Eliminates the need for operators to make machine adjustments for common load applications (e.g. stack & band, stack & wrap, labels, corner boards, top sheet, top box, short loads) through pre-established, yet customizable wrap profile settings.

Help

Provides simple video and text instruction for countering stretch wrapping problems: film breaks, product crushing, loads twisting, and more.

Robustness

Hundreds of machine improvements based on 25 years of Q machine warranty experience. Wire connections, motors, reducers, and sensors are improved. Plus new controls.

Production Reports

Advanced diagnostics, productivity charts and fault tracking.

Available Options

Extended Wrap Height
Increase the wrap heights of your loads. Replace the 2032 cm (80") mast with a 2794 cm (110") mast.

220 V - 50/60 Hertz 15 AMP
Adds a transformer to the machine.

Cold Environment
Operate in temperatures below -1 C to -18 C (+31 F to 0 F).

Ramp
Put the load on the turntable with a forklift or a pallet jack.

EZ Weigh™ Integrated Scale
Weigh and wrap loads in one step with a scale built into the turntable.

Forklift Stop
Helps the operator align the load on the turntable.

Pit Mount
It lets the operator put the load on the turntable at floor level. This is available for 1651 mm (65") and 1829 mm (72") turntables. Note: The customer must install this option.

Oversized Turntable
Increase the length and width of your loads. A turntable with a 1829 mm (72") or 2438 mm (96") diameter is available. Note: The 2438 mm (96") turntable has a maximum of 8 rpm.

Click-n-Go® Remote Control
Start or stop the machine from the forklift or other location. Note: You can use the remote for multiple machines.

Specifications

Performance

Peak Production Speed Up to 30-40 Loads/Hr

Load Size Diagonal (Recommended) 1753 mm (69")

Maximum Load Wrap Height 2032 mm (80")

Maximum Load Weight 2267 kg (5000 lbs)

Load Handling

Turntable Speed (Variable) 12 RPM

Turntable Size 1651 mm (65") Diameter

Turntable Drive 1 HP TEFC

Perfomance Features

XT Cut and Clamp 5.0® Standard

Auto Film Cut-Off™ Not Applicable

Pallet Grip® Standard

Load Guardian Standard

Photo-Eye Laser

Laser Height Sensor Standard

Standard Film Width 500 mm (20")

EZ Thread Film Delivery Standard

Standard Pre-Stretch 250%

Wrap Force Variable (Electric)

Film Capacity 250 mm (10") Roll Diameter

Film Delivery System Power Roller-Stretch Plus

EZ Weigh Integrated Scale Optional

NEMA Type 1 Enclosure Standard

Weight and Size

Approx. Shipping Weight 762 kg (1680 lbs)

Size 3023 mm L
1702 mm W
2337 mm H
(119" L x 67" W x 92" H)

Service Requirements

Pneumatic Not Applicable

Dedicated Electric Service Req. US 120 VAC, 20 AMP

Dedicated Electric Service Req. EU 220V-16Amp-50Hz

Warranty

Warranty Duration 5 Years, Unlimited Cycles, All Components Covered
